Winding Unwinding Machine

Winding Unwinding Machine

Also, we are manufacturer of Doctoring Rewinding Machine, Batch Printing Machine Rewinder Unwinder System for widest converting industries. Different types of Winding Rewinding Machine with high quality and heavy duty equipment. Winding Rewinding Machine with different 25 types per client’s application and industry specific requirements. It is with high performance winding quality with an integral part of winding technology depending on stretch wrap film, cling film and many more. our product range includes Rewinder Machine such as Non Woven Rewinding Machine, Doctoring Rewinding Machine, Winding Rewinding Machine, Trim Rewinder, Winder Rewinder Machine and Inspection Cum Rewinder Machine. we have been successful in catering to the requirements of our esteemed clients by offering quality Winding Rewinding Machine For Batch Printing.

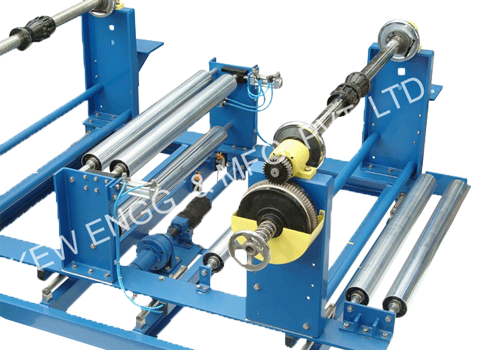

Winding Unwinding Machine

  1. Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
  2. Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying.
  3. The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
  4. It is great substitute to online coding / batching operation
  5. Convenient height for operation
  6. Compact Design
  7. Variable speed drive
  8. Double drive


Web width 100 to 1500 MM
Max. Weight of Unwind 100 to 1000 KG (Different models for different weight)
Max. Parent Reel Dia. 400 MM
Max. Rewind Reel Dia. 400 MM
Rewind Core Dia. 76 MM
Motor 2 HP AC / DC Motor (3, 5 HP also available on suitable model)
Maximum Speed 100 to 150 Mtrs / Min
