Inspection Slitting Rewinding Machine Manufacturer, Inspection Machines is used majorly for checking of bad printed materials on Roto Gravure Printing Machine, Flexo Printing, Batch Printing on Doctoring Rewinding Machine, etc.

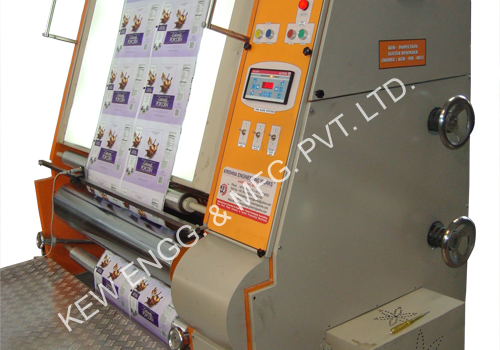

Inspection Slitting Rewinding Machine
- Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
- Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying.
- The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
- It is great substitute to online coding / batching operation
- Convenient height for operation
- Compact Design
- Variable speed drive
- Double drive
|Web width||100 to 1500 MM|
|Max. Weight of Unwind||100 to 1000 KG (Different models for different weight)|
|Max. Parent Reel Dia.||400 MM|
|Max. Rewind Reel Dia.||400 MM|
|Rewind Core Dia.||76 MM|
|Motor||2 HP AC / DC Motor (3, 5 HP also available on suitable model)|
|Maximum Speed||100 to 150 Mtrs / Min|
