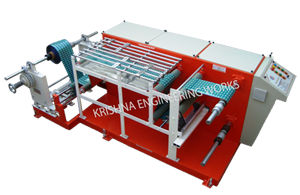

Winding Rewinding Machine With Multihead Inkjet Printer

Winding Rewinding Machine With Multihead Inkjet Printer

Also, we are manufacturer of Doctor Rewinder Machine for widest converting industries. We are Manufacturer Of Winding Rewinding Machine With Multihead Inkjet Printer. Winding Rewinding, Doctoring Rewinding Machine, Doctor Rewinder Machine, Doctor Rewinder.

[tabs class=”yourcustomclass”]
[tab title=”Standarad Features” active=”active”]

Winding Rewinding Machine With Multihead Inkjet Printer

  1. Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
  2. Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying.
  3. The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
  4. It is great substitute to online coding / batching operation
  5. Convenient height for operation
  6. Compact Design
  7. Variable speed drive
  8. Double drive

[/tab]

[tab title=”Technical Specification”]

[table width =”100%” style =”table-bordered” responsive =”true”]
[table_body]
[table_row]
[row_column]Web width[/row_column]
[row_column]100 to 1500 MM[/row_column]
[/table_row]
[table_row]
[row_column]Max. Weight of Unwind[/row_column]
[row_column]100 to 1000 KG (Different models for different weight)[/row_column]
[/table_row]
[table_row]
[row_column]Max. Parent Reel Dia.[/row_column]
[row_column] 400 MM[/row_column]
[/table_row]
[table_row]
[row_column]Max. Rewind Reel Dia.[/row_column]
[row_column]400 MM[/row_column]
[/table_row]
[table_row]
[row_column]Rewind Core Dia.[/row_column]
[row_column] 76 MM[/row_column]
[/table_row]
[table_row]
[row_column]Motor[/row_column]
[row_column]2 HP AC / DC Motor (3, 5 HP also available on suitable model) [/row_column]
[/table_row]
[table_row]
[row_column]Maximum Speed[/row_column]
[row_column]100 to 150 Mtrs / Min[/row_column]
[/table_row]
[/table_body]
[/table]
[/tab]
