Also, we are manufacturer of Rewinder Machine Inkjet Printer for widest printing industries. We are Exporter of a wide range of products which include Label Roll Dispenser Machine, Label Or Pouch Or Carton Dispensing Machine, Industrial Printing Machines, Confectionery Batch Printing Machine, Inkjet Batch Coding Machine and Spices & Masala Batch Printing Machine. Also, Winding Rewinding Machine, Conveyor, Thermal Transfer Printer, Inkjet Printer, for Batch Coding, Batch Coding, High-quality Offline Batch Coding Machine Equipment. All types of Heavy Duty Offline Batch Printing Machine Equipment. Also, dealing in Doctoring Rewinding, Industrial Roller, Batch Coding, Printing Machine and many more extraordinary machines. Batch Coding, batch coding machine, batch coding inkjet printer, batch coding machines suppliers, manufacturer, batch coding machine for pouch, batch coding machine domino, and much more.

Batch Printing for different types of Industries, Offline Batch Printing Machine with different types of machines like Winding Rewinding Machine, Industrial Inkjet Printer, Conveyor, Thermal Transfer Printer. Batch Printing per clients requirement in Roll form.
[tabs class=”yourcustomclass”]
[tab title=”Standarad Features” active=”active”]

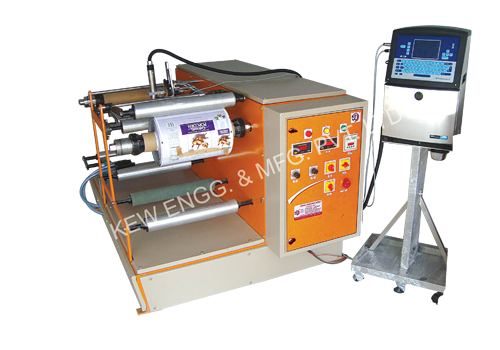

Roll To Roll Batch Printing Machine

1. Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
2. Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying.
3. The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
4. It is great substitute to online coding / batching operation
5. Convenient height for operation
6. Compact Design
7. Variable speed drive
8. Double drive

[/tab]

[tab title=”Technical Specification”]

[table width =”100%” style =”table-bordered” responsive =”true”]
[table_body]
[table_row]
[row_column]Web width[/row_column]
[row_column]100 to 1500 MM[/row_column]
[/table_row]
[table_row]
[row_column]Max. Weight of Unwind[/row_column]
[row_column]100 to 1000 KG (Different models for different weight)[/row_column]
[/table_row]
[table_row]
[row_column]Max. Parent Reel Dia.[/row_column]
[row_column] 400 MM[/row_column]
[/table_row]
[table_row]
[row_column]Max. Rewind Reel Dia.[/row_column]
[row_column]400 MM[/row_column]
[/table_row]
[table_row]
[row_column]Rewind Core Dia.[/row_column]
[row_column] 76 MM[/row_column]
[/table_row]
[table_row]
[row_column]Motor[/row_column]
[row_column]2 HP AC / DC Motor (3, 5 HP also available on suitable model) [/row_column]
[/table_row]
[table_row]
[row_column]Maximum Speed[/row_column]
[row_column]100 to 150 Mtrs / Min[/row_column]
[/table_row]
[/table_body]
[/table]
[/tab]
