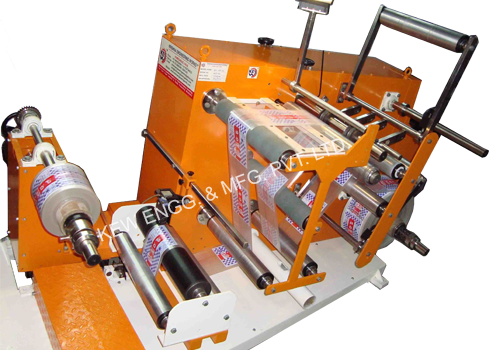

Inspection Winding Rewinding Machine is specially built with high speed Rewinding Machine. Also, we are manufacturer of Slitting Rewinding Machine for widest converting industries. Inspection Rewinding Machine with advanced feature like, adjustable slitting assembly and many more per clients requirement. Our Inspection Rewinding Machine, specially designed to meet the standards that effectively meet the clients requirements for Inspection and Slitter Rewinder Machine , Slitting Machine. All our Inspection Rewinding Machine is used highly for checking and for inspection of bad printed materials on Rotogravure Printing, Flexo Printing Machine, Batch Printing.
[tabs class=”yourcustomclass”]
[tab title=”Standarad Features” active=”active”]
Inspection Winding Rewinding Machine
- Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
- Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying.
- The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
- It is great substitute to online coding / batching operation
- Convenient height for operation
- Compact Design
- Variable speed drive
- Double drive
[/tab]
[tab title=”Technical Specification”]
[table width =”100%” style =”table-bordered” responsive =”true”]
[table_body]
[table_row]
[row_column]Web width[/row_column]
[row_column]100 to 1500 MM[/row_column]
[/table_row]
[table_row]
[row_column]Max. Weight of Unwind[/row_column]
[row_column]100 to 1000 KG (Different models for different weight)[/row_column]
[/table_row]
[table_row]
[row_column]Max. Parent Reel Dia.[/row_column]
[row_column] 400 MM[/row_column]
[/table_row]
[table_row]
[row_column]Max. Rewind Reel Dia.[/row_column]
[row_column]400 MM[/row_column]
[/table_row]
[table_row]
[row_column]Rewind Core Dia.[/row_column]
[row_column] 76 MM[/row_column]
[/table_row]
[table_row]
[row_column]Motor[/row_column]
[row_column]2 HP AC / DC Motor (3, 5 HP also available on suitable model) [/row_column]
[/table_row]
[table_row]
[row_column]Maximum Speed[/row_column]
[row_column]100 to 150 Mtrs / Min[/row_column]
[/table_row]
[/table_body]
[/table]
[/tab]
