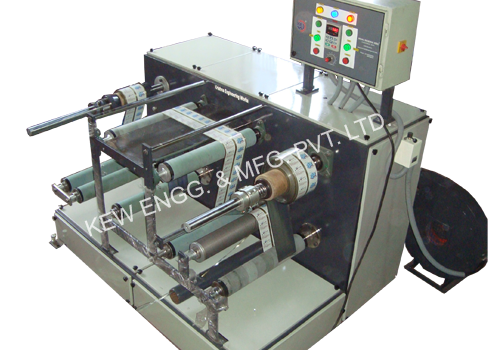

Doctoring Slitting Rewinding Machine

Doctoring Slitting Rewinding Machine

Also, we are manufacturer of Web Aligner for Doctoring Slitting Rewinding Machine. Standard Doctoring Rewinding Machine, Table Top, High Speed Doctoring Rewinding, Heavy Duty Doctoring Rewinding Machine with Slitting System, Winding Rewinding With Multihead Inkjet Printer, with Thermal Transfer Overprinter. High Speed Doctor Re Reeling and many more per clients requirement and application.

[tabs class=”yourcustomclass”]
[tab title=”Standarad Features” active=”active”]

Doctoring Slitting Rewinding Machine

  1. Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
  2. Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying.
  3. The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
  4. It is great substitute to online coding / batching operation
  5. Convenient height for operation
  6. Compact Design
  7. Variable speed drive
  8. Double drive

[/tab]

[tab title=”Technical Specification”]

[table width =”100%” style =”table-bordered” responsive =”true”]
[table_body]
[table_row]
[row_column]Web width[/row_column]
[row_column]100 to 1500 MM[/row_column]
[/table_row]
[table_row]
[row_column]Max. Weight of Unwind[/row_column]
[row_column]100 to 1000 KG (Different models for different weight)[/row_column]
[/table_row]
[table_row]
[row_column]Max. Parent Reel Dia.[/row_column]
[row_column] 400 MM[/row_column]
[/table_row]
[table_row]
[row_column]Max. Rewind Reel Dia.[/row_column]
[row_column]400 MM[/row_column]
[/table_row]
[table_row]
[row_column]Rewind Core Dia.[/row_column]
[row_column] 76 MM[/row_column]
[/table_row]
[table_row]
[row_column]Motor[/row_column]
[row_column]2 HP AC / DC Motor (3, 5 HP also available on suitable model) [/row_column]
[/table_row]
[table_row]
[row_column]Maximum Speed[/row_column]
[row_column]100 to 150 Mtrs / Min[/row_column]
[/table_row]
[/table_body]
[/table]
[/tab]
