Also, we are manufacturer of Doctoring Rewinding Machine for widest converting industries.
[tabs class=”yourcustomclass”]
[tab title=”Standarad Features” active=”active”]

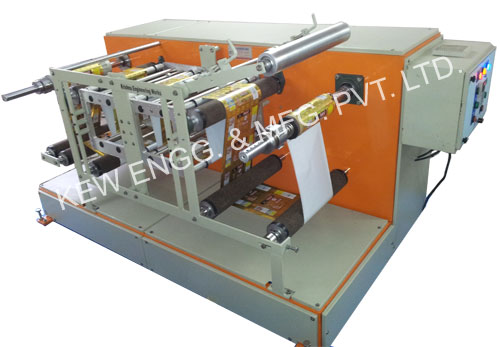

Winding Rewinding Machine With Thermal Transfer Overprinter
Thermal Transfer Overprinter (TTO)
- Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
- Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying.
- The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
- It is great substitute to online coding / batching operation
- Convenient height for operation
- Compact Design
- Variable speed drive
- Double drive
[/tab]
[tab title=”Technical Specification”]
[table width =”100%” style =”table-bordered” responsive =”true”]
[table_body]
[table_row]
[row_column]Web width[/row_column]
[row_column]100 to 1500 MM[/row_column]
[/table_row]
[table_row]
[row_column]Max. Weight of Unwind[/row_column]
[row_column]100 to 1000 KG (Different models for different weight)[/row_column]
[/table_row]
[table_row]
[row_column]Max. Parent Reel Dia.[/row_column]
[row_column] 400 MM[/row_column]
[/table_row]
[table_row]
[row_column]Max. Rewind Reel Dia.[/row_column]
[row_column]400 MM[/row_column]
[/table_row]
[table_row]
[row_column]Rewind Core Dia.[/row_column]
[row_column] 76 MM[/row_column]
[/table_row]
[table_row]
[row_column]Motor[/row_column]
[row_column]2 HP AC / DC Motor (3, 5 HP also available on suitable model) [/row_column]
[/table_row]
[table_row]
[row_column]Maximum Speed[/row_column]
[row_column]100 to 150 Mtrs / Min[/row_column]
[/table_row]
[/table_body]
[/table]
